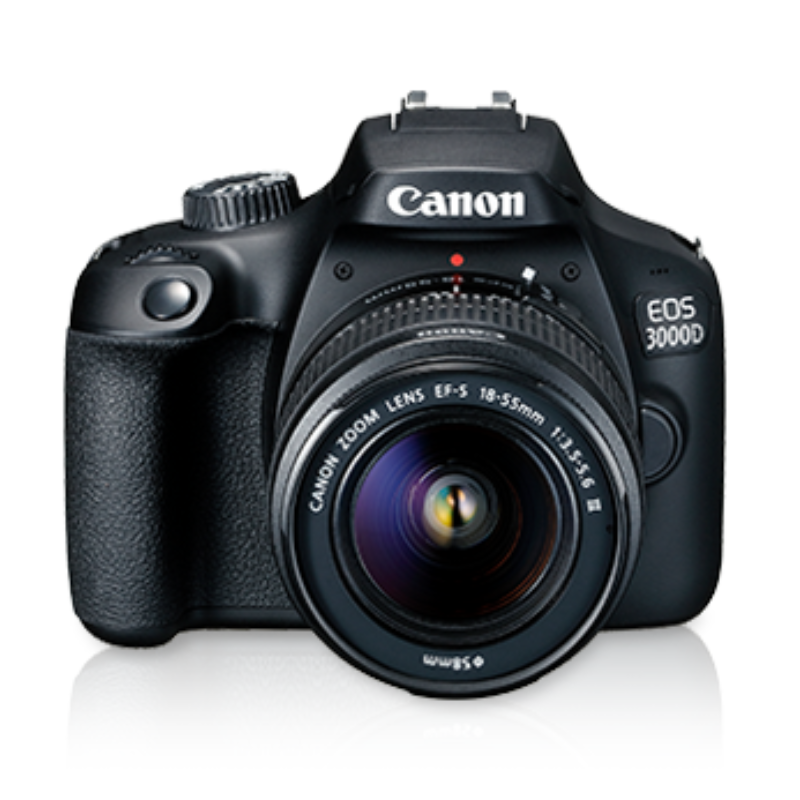

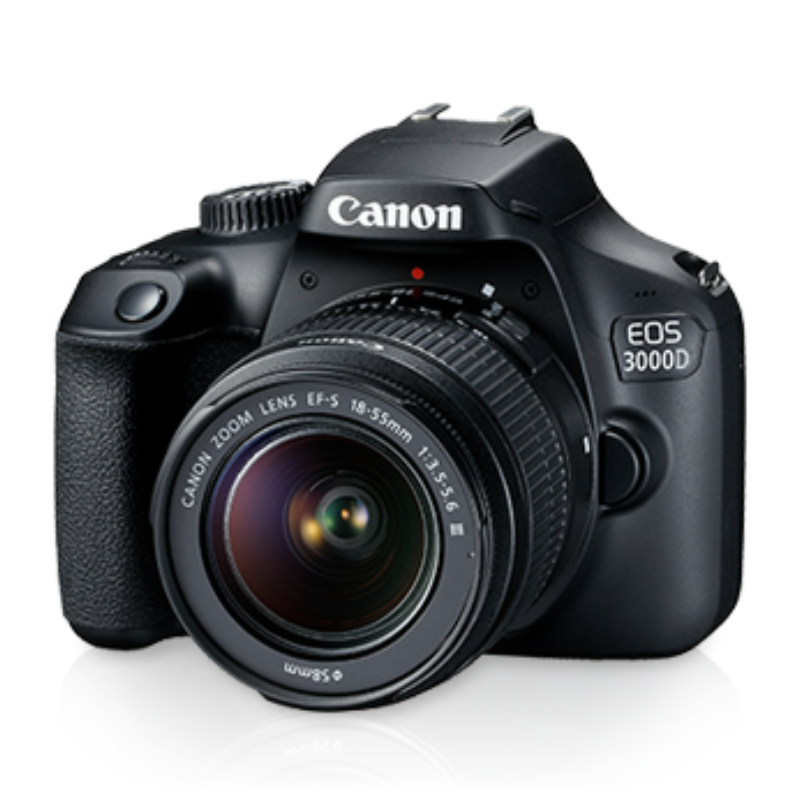

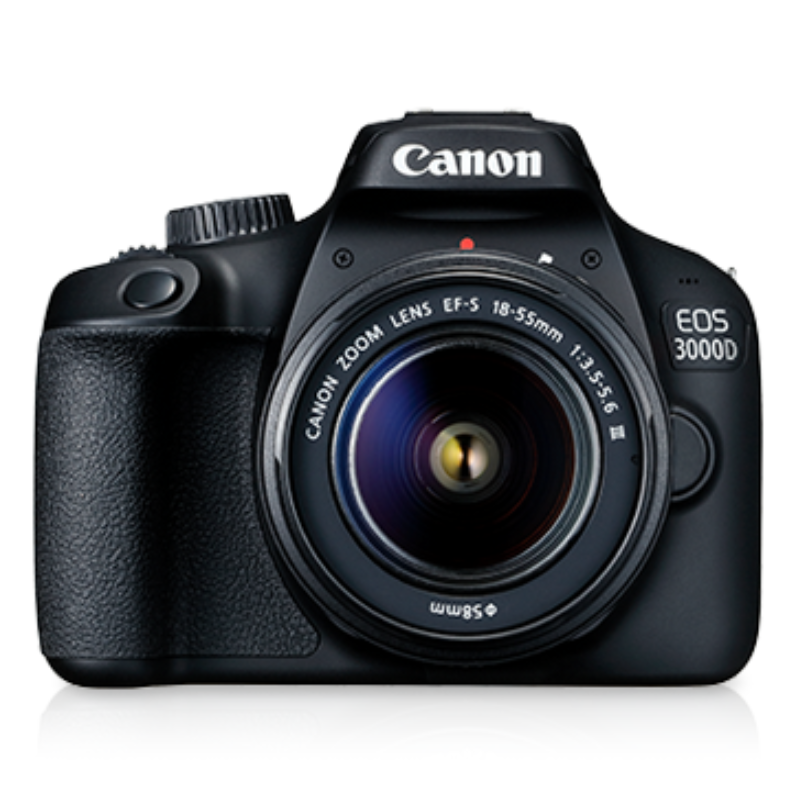

Canon EOS 3000D KIT (EF-S 18-55mm f/3.5-5.6 III DC Lens)

Type

Type

Digital, single-lens reflex, AF/AE camera with built-in flash

Recording media

SD/SDHC/SDXC memory card

* Not compatible with UHS speed class cards

Image sensor size

Approx. 22.3 x 14.9mm

Compatible lenses

Canon EF lenses (including EF-S lenses)
* Excluding EF-M lenses
(35mm-equivalent focal length is approx. 1.6 times the lens focal length)

Lens mount

Canon EF mount

Image Sensor

Type

CMOS sensor

Pixels

Effective pixels: Approx. 18.00 megapixels
Total pixels: Approx. 18.70 megapixels
* Rounded to the nearest 100,000

Aspect ratio

3:2

Color filter system

RGB primary color filters

Low-pass filter

Fixed position in front of the image sensor

Dust deletion feature

1) Dust Delete Data acquisition and appending

2) Manual cleaning of sensor

Recording System

Recording format

Design rule for Camera File System 2.0

Image type

JPEG, RAW (14-bit, Canon original)

RAW+JPEG Large simultaneous recording possible

File size

Folder setting

Folder creation/selection enable

File numbering

Continuous, Auto reset, Manual reset

Image Processing During Shooting

Color space

sRGB、Adobe RGB

Picture Style

Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1-3

Basic+

Ambience-based shots, Light/scene-based shots

White balance

Auto (Ambience priority), Auto (White priority), Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Customs

Color temperature compensation

Flash color temperature information transmission

Provided

Noise reduction

Applicable to high ISO speed shots and long exposures

Automatic Image brightness correction

Auto Lighting Optimizer

Highlight tone priority

Provided

Lens aberration correction:

Peripheral illumination correction

Viewfinder

Type

Eye-level pentamirror

Coverage

Magnification

Approx. 0.8x (-1 m^-1，with 50mm lens at infinity）

Eyepoint

Approx. 21 mm (from eyepiece lens center at -1 m^-1）

Dioptric adjustment range

Not Provided

Focusing screen

Fixed, Precision Matte

Viewfinder information

Mirror

Quick-return half mirror

Depth-of-field preview

Enabled with Custom Function setting

Type

TTL Secondary image-registration, phase-difference detection with the dedicated AF sensor

AF points

9-point (All AF points sensitive to f/5.6. Cross-type AF with center AF point)

Focusing brightness range

EV 0 - 18 (Center AF point)
(With One-Shot AF, at room temperature, ISO 100)

AF operation

1) One-Shot AF (ONE SHOT)
2) AI Servo AF (AI SERVO)
3) AI Focus AF (AI FOCUS)
4) Manual focusing (MF)

AF point selection

Automatic selection, Manual selection

Selected AF point display

Indicated by superimposed display in the viewfinder and on the LCD monitor

AF-assist beam

Small series of flashes fired by built-in flash

Exposure Control

Metering modes

63-zone TTL open aperture metering
1) Evaluative metering (linkable to all AF points)
2) Partial metering (approx. 10% of viewfinder at center)
3) Center-weighted average metering

Metering brightness range

EV 1 - 20 (at room temperature, ISO 100, with evaluative metering)

Shooting mode

Basic Zone modes:
Scene Intelligent Auto, Creative Auto, Portrait, Landscape, Close-up, Sports, Food, Night Portrait
Creative Zone modes:
Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure

ISO speed

(Recommended Exposure Index)

Basic Zone modes: ISO 100 - 3200 set automatically

P, Tv, Av, M: Auto ISO, ISO 100 - 6400 set manually (whole-stop increments), and ISO expansion to “H” (equivalent to ISO 12800)

ISO speed settings

Maximum limit for ISO Auto settable

Exposure compensation

Manual: +/-5 stops in 1/3- or 1/2-stop increments
AEB: +/-2 stops in 1/3- or 1/2-stop increments (can be combined with manual exposure compensation)

AE lock

Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved
Manual: With AE lock button

Shutter

Type

Electronically-controlled, focal-plane shutter

Shutter speeds

1/4000 to 30 sec. (Total shutter speed range; available range varies by shooting mode), Bulb, X-sync at 1/200 sec.

Shutter release

Soft-touch electromagnetic release

Flash

Built-in flash

External flash

EX-series Speedlite only

Flash metering

E-TTL II Autoflash

Flash exposure compensation

+/-2 stops in 1/3- or 1/2-stop increments

FE lock

Provided

PC terminal

None

Flash Control

Built-in flash function settings, external Speedlite function settings, external Speedlite Custom Function settings

Drive System

Drive modes

• Single shooting
• Continuous shooting
• Self-timer: 10-sec
• Self-timer: 2-sec
• Self-timer: Continuous

Continuous shooting speed

Max. approx. 3.0 shots/sec.

Maximum burst

JPEG Large/Fine: Full
RAW: approx. 6 shots
RAW+JPEG Large/Fine: approx. 5 shots
* Figures are based on Canon’s testing standards (ISO 100 and Standard Picture Style) using an 8 GB card.
* “Full” indicates that shooting is possible until the card becomes full.

Live View Shooting

Focus methods

AF Method

• FlexiZone-Single
• Face detection Live mode
• Quick mode
• Manual focus (approx. 5x / 10x magnification possible)

Focusing brightness range

EV 1 - 18 (at room temperature, ISO 100)

Metering mode

Evaluative metering (315 zones)

Metering brightness range

EV 0 - 20 (at room temperature, ISO 100)

Magnified View

Image within the magnifying frame can be magnified by approx. 5x or approx. 10x

Exposure compensation

+/- 5 stops in 1/3- or 1/2-stop increments

Grid display

Two types

Aspect ratio

3:2，4:3，16:9，1:1

Movie Shooting

Recording format

MOV
[Movie] MPEG-4 AVC/H.264 Variable (average) bit rate
[Audio] Linear PCM

Recording size and frame rate

Full HD (1920x1080): 29.97p/25p/23.98p
HD (1280x720): 59.94p/50p
SD (640x480): 29.97p/25p

Bit rate

Full HD (29.97p/25p/23.98p): Approx. 46 Mbps
HD (59.94p/50p): Approx. 46 Mbps
SD (29.97p/25p): Approx. 11 Mbps

Focus method

Same as focusing with Live View shooting

Focusing brightness range

EV 1 - 18 (at room temperature, ISO 100)

Metering mode

Center-weighted average or evaluative metering with the image sensor
* Automatically set by the focusing mode

Metering brightness range

EV 0 - 20 (at room temperature, ISO 100)

Exposure control

Autoexposure (Program AE for movie shooting) and manual exposure

Exposure compensation

+/-3 stops in 1/3-stop increments

ISO speed
(Recommended Exposure Index)

With autoexposure shooting: ISO 100 - ISO 6400 set automatically
With manual exposure: ISO 100 - ISO 6400 set automatically/manually

Video snapshots

Settable to 2 sec./4 sec./8sec.

Sound recording

Built-in monaural microphone
Sound recording level adjustable, wind filter provided

Grid display

Two types

Still photo shooting

Not possible during movie shooting

LCD Monitor

Type

TFT color liquid-crystal monitor

Monitor size

Approx. 2.7-inch (4:3) with approx. 230,000 dots

Brightness adjustment

Manual (7 levels)

Interface languages

25

Feature Guide

Displayable

Playback

Image display format

• Basic info, basic info + image quality/image file number, shooting info. display, histogram
• index display (4/9)

Zoom magnification

Approx. 1.5x - 10x

Highlight alert

Overexposed highlights blinks

Image browsing methods

Single image, jump by 10 or 100 images, by shooting date, by folder, by movie, by stills, by rating

Image rotation

Provided

Ratings

Provided

Histogram

Brightness, RGB

Movie playback

Provided (LCD Monitor, HDMI OUT)
No Built-in speaker

Image protect

Provided

Slide show

All images, by date, by folder, by movies, by stills, by rating
Five transition effects selectable

Background music

Selectable for slide shows and movie playback

Post-Processing of Images

Creative filters

Grainy B/W, Soft focus, Fish-eye effect, Toy camera effect, Miniature effect

Resize

Possible

Direct Printing

Compatible printers

PictBridge-compatible printers

Printable images

JPEG and RAW images compliant to Design rule for Camera File System

Printing order

DPOF Version 1.1 compatible

Wireless Communications

Standards compliance

IEEE 802.11b/g/n

Transmission method

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)

Transmission range

Approx. 15 m
* When connected to a smartphone
* With no obstructions between the transmitting and receiving antennas and no radio interference

Transmission frequency (central frequency)

Frequency: 2412 to 2462 MHz, Channels: 1 to 11 ch

Connection method

Camera access point mode, infrastructure*
* Wi-Fi Protected Setup supported

Security

Authentication method: Open system, Shared key, WPA/WPA2-PSK
Encryption: WEP, TKIP, AES

Wi-Fi Functions

Connection to smartphones

Images can be viewed, controlled, and received using a smartphone
Remote control of the camera using a smartphone is possible

Transfer images between cameras

Transferring one image
Transferring selected images
Transferring resized images

Print from Wi-Fi printers

Images to be printed can be sent to a printer supporting PictBridge(wireless LAN)

Send images to a Web service

Images in the camera or links to images can be sent to registered Web services

Customization Features

Custom Functions

10

My Menu registration

Possible

Copyright information

Entry and appending possible

Interface

Digital terminal

Hi-Speed USB (USB 2.0)

• For Computer communication
• For Direct printing
• For Connect Station CS100 connection Station CS100

HDMI mini OUT terminal

Type C (Auto switching of resolution)

Remote control terminal

Not Provided

Eye-Fi Card

Compatible

Power Source

Battery

Battery Pack LP-E10 (Quantity 1)
* Household power cannot be used

Battery life

(Based on CIPA testing standards)

Approx. number of shots

*With a fully-charged Battery Pack LP-E10

Movie shooting time

Approx. 1hr. 15min. at room temperature (23°C)
Approx. 1hr. 10min. at low temperature (0°C)
* With a fully-charged Battery Pack LP-E10

Power saving

Provided, power turns off after the set time (30 sec., 1, 2, 4, 8 or 15 min.) of non-operation elapses

Startup Time

Approx. 0.1 sec. (Based on CIPA testing standards)

Dimensions (W x H x D)

129.0 x 101.6 x 77.1 mm

Dimensions (W x H x D)

Approx. 436 g (Including battery and card)
Approx. 389 g (Body only)

Working temperature range

0^oC - 40^oC

Working humidity

85% or less
